Schematic and parts list for: Shop-Vac Model: K250
This is a list of parts and a diagram and schematic for: Shop-Vac Model: K250
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: K250 (2.5 Gal, 2.5 HP, All Around EZ)
Popular Supplies
Product is special order please allow 2-4 weeks for delivery.
$12.31Add to cart

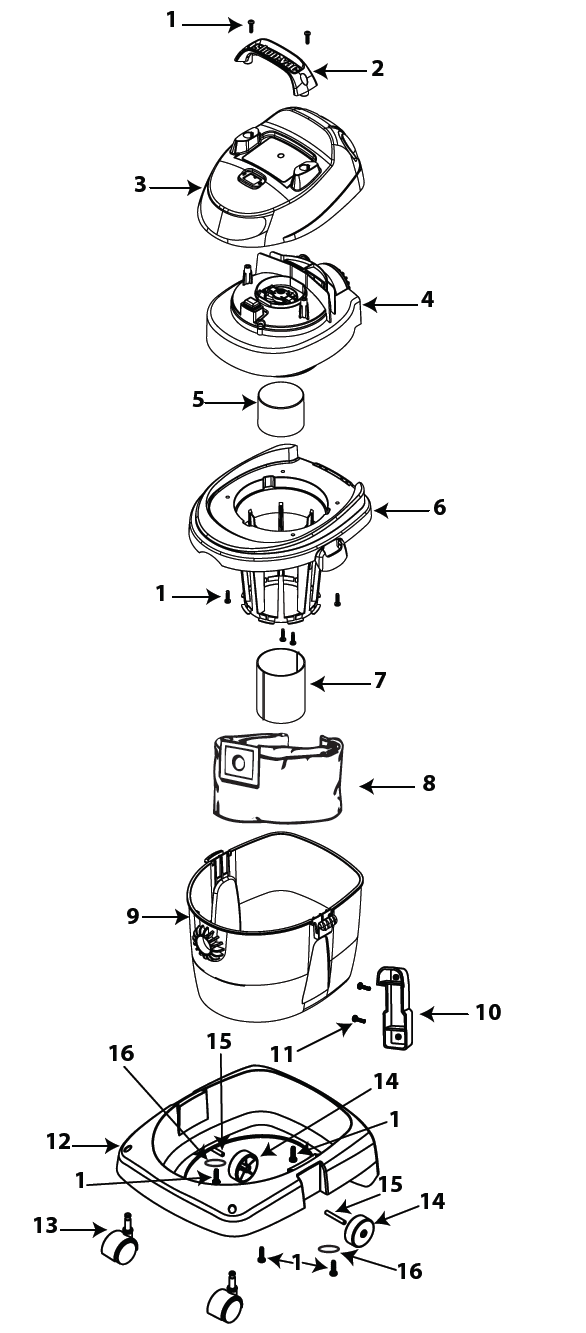

![](https://www.vacuumsrus.com/wp-content/uploads/2023/11/vacuums-K250-2-1-450x1024.png)
# | Part image | Description | SKU | Price |
01 | Not Available | Shop-Vac Screw 10 X 3/4' Trilobe, Twin Lead | SV-1516599 | Not Available |
02 | Not Available | Shop-Vac Handle | SV-4510800 | Not Available |
03 | Not Available | Shop-Vac Motor Cover | SV-1944744 | Not Available |
04 | Not Available | Shop-Vac Power Unit Assembly | SV-1944554 | Not Available |
05 | Not Available | Shop-Vac Float | SV-3545000 | Not Available |
06 | Not Available | Shop-Vac Lid Cage Assembly | SV-1944548 | Not Available |
07 | ![]() | Filter, Foam Sleeve Wet/Dry Type R Ea Part Number: 90585-00 for Shop Vac | 9058500 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
08 | Not Available | Shop-Vac Collection Bag | SV-90668 | Not Available |
09 | Not Available | Shop-Vac Tank Assembly | SV-1944743 | Not Available |
10 | Not Available | Shop-Vac Wall Bracket | SV-4510910 | Not Available |
11 | Not Available | Shop-Vac Screw #10 x 1 SLT Pan HD Type AB | SV-1501199 | Not Available |
12 | Not Available | Shop-Vac Dolly | SV-4512111 | Not Available |
13 | Not Available | Shop-Vac Caster | SV-6774210 | Not Available |
14 | Not Available | Shop-Vac Wheel | SV-4512200 | Not Available |
15 | Not Available | Shop-Vac Shaft | SV-4512300 | Not Available |
16 | Not Available | Shop-Vac Flat Washer | SV-0702199 | Not Available |

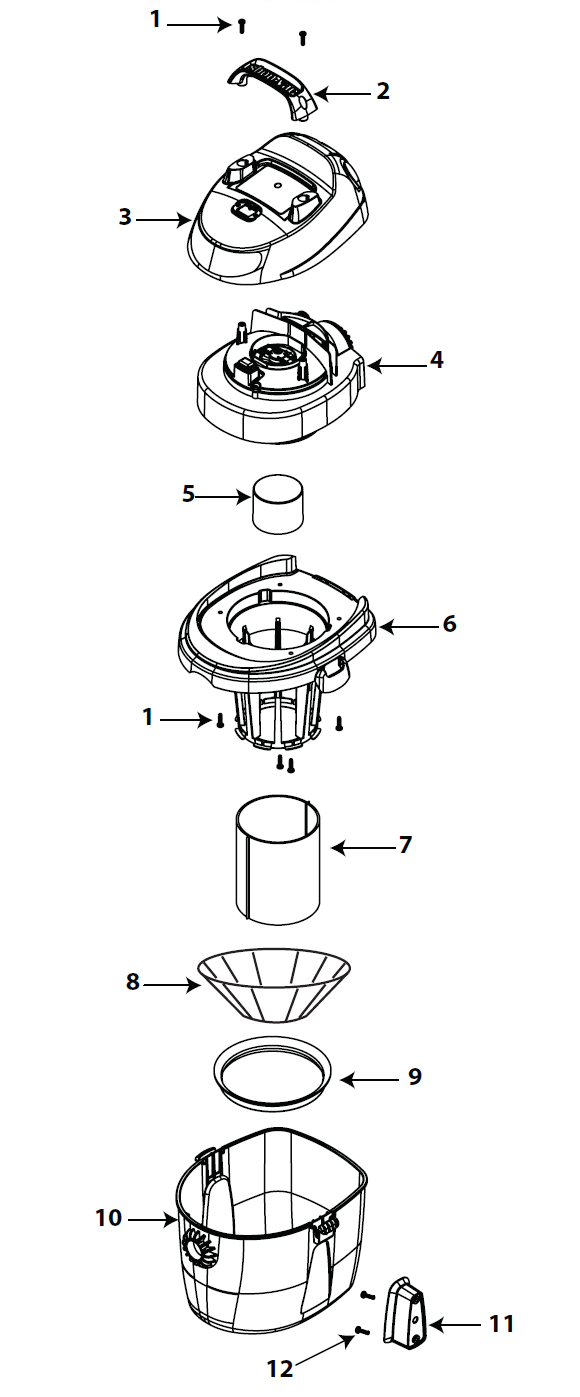

![](https://www.vacuumsrus.com/wp-content/uploads/2023/11/vacuums-K250-1-1-425x1024.png)
# | Part image | Description | SKU | Price |
01 | Not Available | Shop-Vac Screw 10 X 3/4' Trilobe, Twin Lead | SV-1517699 | Not Available |
02 | Not Available | Shop-Vac Handle | SV-4510802 | Not Available |
03 | Not Available | Shop-Vac Motor Cover | SV-1944551 | Not Available |
04 | Not Available | Shop-Vac Power Unit Assembly | SV-1944554 | Not Available |
05 | Not Available | Shop-Vac Float | SV-3545000 | Not Available |
06 | Not Available | Shop-Vac Lid Cage Assembly | SV-1944548 | Not Available |
07 | Not Available | Shop-Vac Foam Sleeve | SV-9058500 | Not Available |
08 | Not Available | Shop-Vac Reusable Dry Filter | SV-9010700 | Not Available |
09 | Not Available | Shop-Vac Filter Ring | SV-3006500 | Not Available |
10 | Not Available | Shop-Vac Tank Assembly | SV-1098797 | Not Available |
11 | Not Available | Shop-Vac Wall Bracket | SV-4510900 | Not Available |
12 | Not Available | Shop-Vac Screw #10 x 1 SLT Pan HD Type AB | SV-1501199 | Not Available |
