Schematic and parts list for: Shop-Vac Model: LB550B

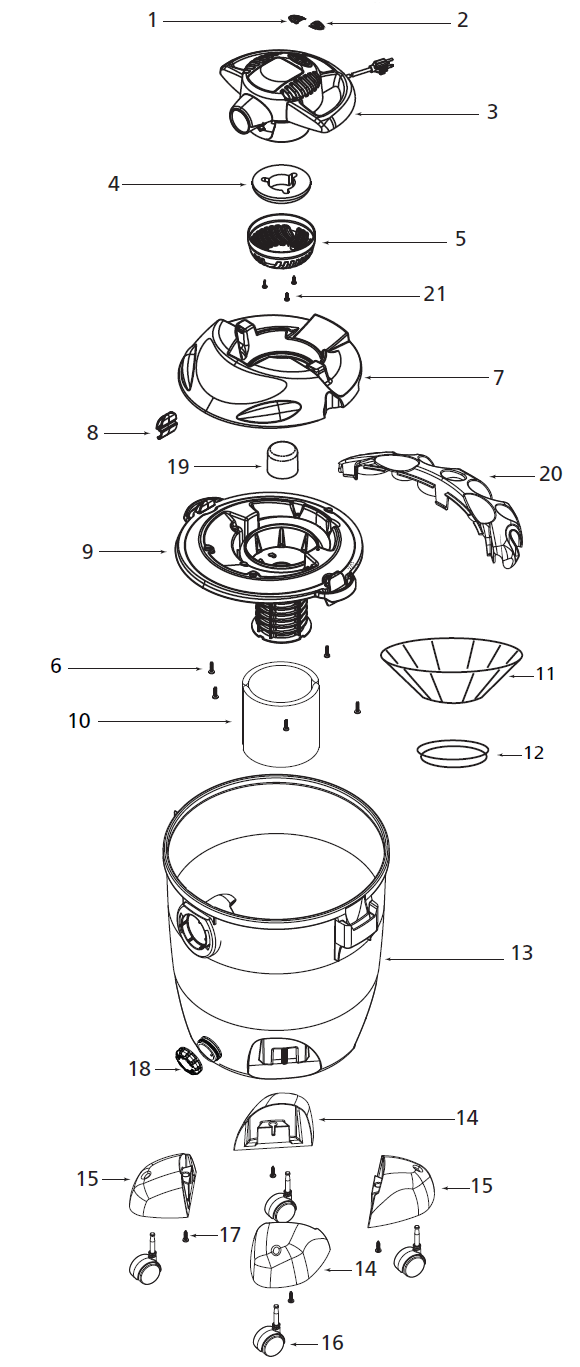

This is a list of parts and a diagram and schematic for: Shop-Vac Model: LB550B

Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

Parts for: LB550B (12 Gal, 5.5 HP, Blue)


# Part image Description SKU Price
01Not AvailableShop-Vac Switch Button - Off SV-7441510Not Available
02Not AvailableShop-Vac Switch Button - On SV-7441500Not Available
03Not AvailableShop-Vac Power Unit SV-7230997Not Available
04Not AvailableShop-Vac Foam Pad SV-8541205Not Available
05Not AvailableShop-Vac Inlet Shield SV-7442300Not Available
06Not AvailableShop-Vac Screw 10 x 3/4' Trilobe T25 Head SV-1516599Not Available
07Not AvailableShop-Vac Tank Cover SV-1944310Not Available
08Not AvailableShop-Vac Lid Latch SV-7444502Not Available
09Not AvailableShop-Vac Lid Cage & Latch Assembly SV-7350666Not Available
10Not AvailableShop-Vac Foam Sleeve SV-9058511Not Available
11Not AvailableShop-Vac Reusable Dry Filter SV-9013711Not Available
12Not AvailableShop-Vac Mounting Ring SV-3006500Not Available
13Not AvailableShop-Vac Tank Assembly SV-1028097Not Available
14Not AvailableShop-Vac Caster Foot A SV-8568001Not Available
15Not AvailableShop-Vac Caster Foot B SV-8568011Not Available
16Not AvailableShop-Vac Caster SV-6774200Not Available
17Not AvailableShop-Vac Screw 10 x 3/4' SL Hex Head SV-1503999Not Available
18Not AvailableShop-Vac Drain Cover SV-7446801Not Available
19Not AvailableShop-Vac Float SV-7411200Not Available
20Not AvailableShop-Vac Tool Holder SV-8412001Not Available
21Not AvailableShop-Vac Screw #10 Trilobe THD Roll 48 SV-1517799Not Available
