Schematic and parts list for: Shop-Vac Model: LB650C

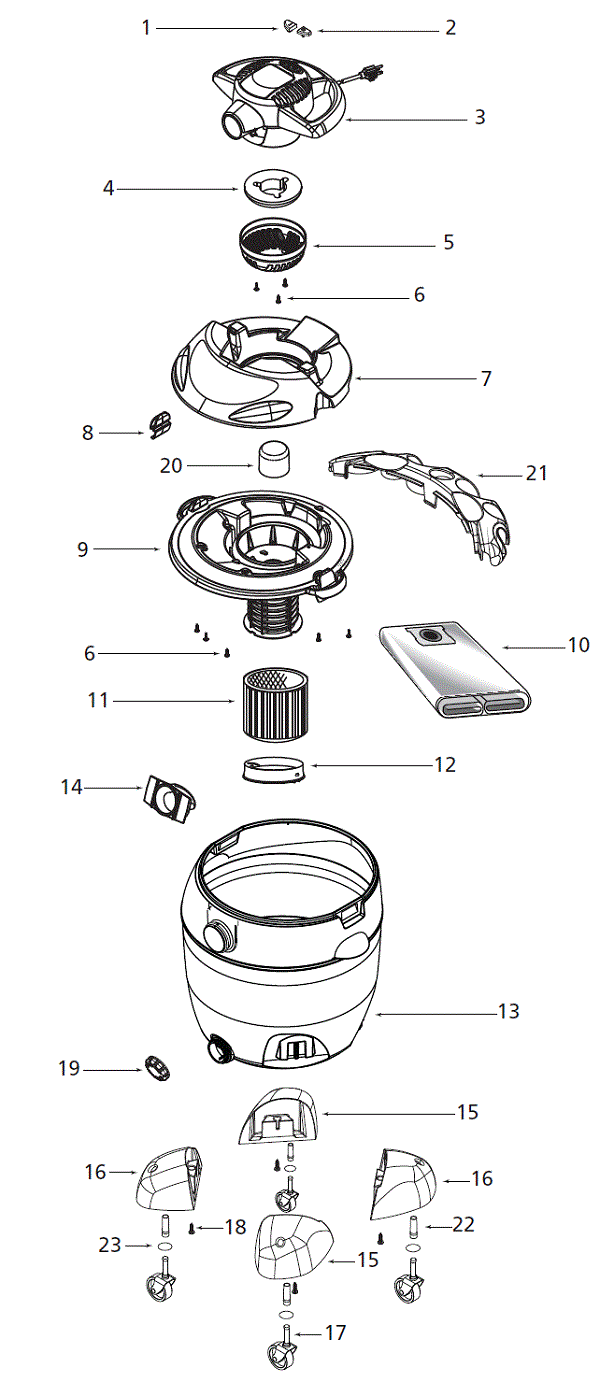

This is a list of parts and a diagram and schematic for: Shop-Vac Model: LB650C
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: LB650C (16 Gal, 6.5 HP, Blue)
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Switch Button - I | SV-7441515 | Not Available |
| 02 | Not Available | Shop-Vac Switch Button - O | SV-7441520 | Not Available |
| 03 | Not Available | Shop-Vac Power Unit | SV-7267597 | Not Available |
| 04 | Not Available | Shop-Vac Foam Pad | SV-8541205 | Not Available |
| 05 | Not Available | Shop-Vac Inlet Shield | SV-7442300 | Not Available |
| 06 | Not Available | Shop-Vac Screw 10 x 3/4' Trilobe Twin Lead | SV-1517699 | Not Available |
| 07 | Not Available | Shop-Vac Tank Cover | SV-1944310 | Not Available |
| 08 | Not Available | Shop-Vac Lid Latch | SV-7444502 | Not Available |
| 09 | Not Available | Shop-Vac Lid Cage & Latch Assembly | SV-7350676 | Not Available |
| 10 | Not Available | Shop-Vac Collection Bag | SV-9066311 | Not Available |
| 11 | Not Available | Shop-Vac Cartridge Filter | SV-9030411 | Not Available |
| 12 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 13 | Not Available | Shop-Vac Tank Assembly | SV-7392697 | Not Available |
| 14 | Not Available | Shop-Vac Inlet Deflector | SV-7413100 | Not Available |
| 15 | Not Available | Shop-Vac Caster Foot A | SV-7431332 | Not Available |
| 16 | Not Available | Shop-Vac Caster Foot B | SV-7431352 | Not Available |
| 17 | Not Available | Shop-Vac Caster | SV-6773900 | Not Available |
| 18 | Not Available | Shop-Vac Screw 10 x 3/4' SL Hex Head | SV-1503999 | Not Available |
| 19 | Not Available | Shop-Vac Drain Cover | SV-7446801 | Not Available |
| 20 | Not Available | Shop-Vac Float | SV-7411200 | Not Available |
| 21 | Not Available | Shop-Vac Tool Holder | SV-8412001 | Not Available |
| 22 | Not Available | Shop-Vac Retainer | SV-8565700 | Not Available |
| 23 | Not Available | Shop-Vac Flatwasher | SV-0704399 | Not Available |
