Schematic and parts list for: Shop-Vac Model: QAL80A
This is a list of parts and a diagram and schematic for: Shop-Vac Model: QAL80A

Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

Parts for: QAL80A (3 Gal, 4.5 HP, Blue)

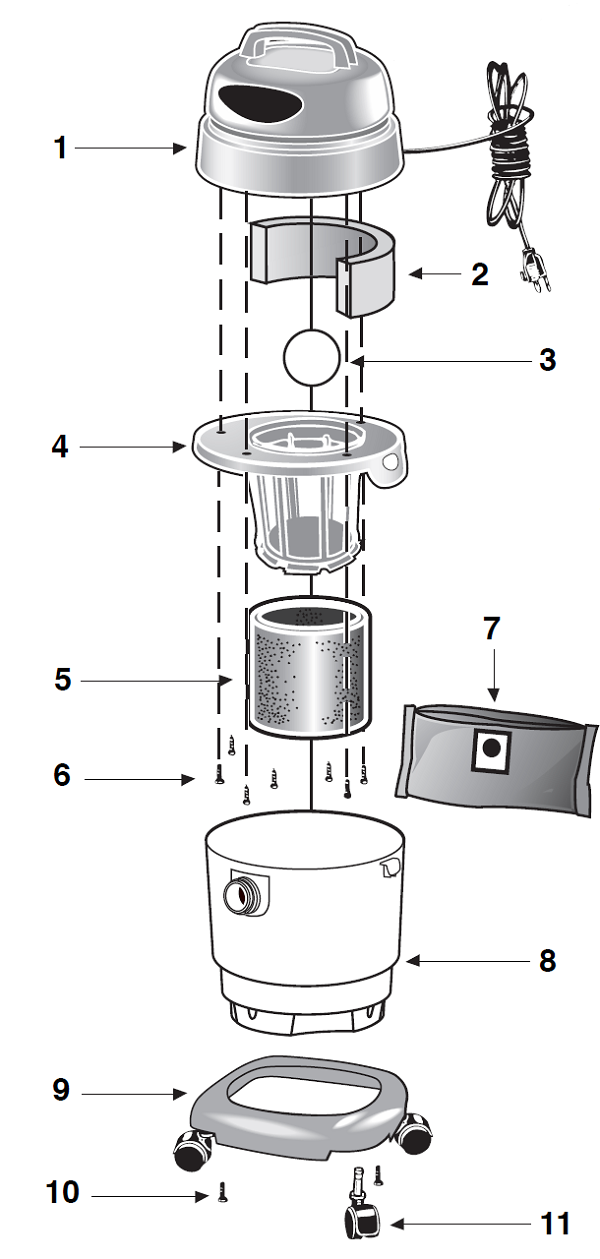

# Part image Description SKU Price
01Not AvailableShop-Vac Power Unit Assembly SV-8110497Not Available
02Not AvailableShop-Vac Foam Insert SV-1290508Not Available
04Not AvailableShop-Vac Lid Cage SV-3181622Not Available
05Not AvailableShop-Vac Foam Sleeve SV-9058500Not Available
06Not AvailableShop-Vac Screw Hex Head #10 x 3/4 Type AB SV-1516599Not Available
07Not AvailableShop-Vac Collection Filter Bag SV-9066900Not Available
08Not AvailableShop-Vac Tank Assembly SV-3151497Not Available
09Not AvailableShop-Vac Dolly SV-3153602Not Available
10Not AvailableShop-Vac Screw #8 x 1/2 Ph Pan Hd Type A SV-1501599Not Available
11Not AvailableShop-Vac Caster SV-6774220Not Available

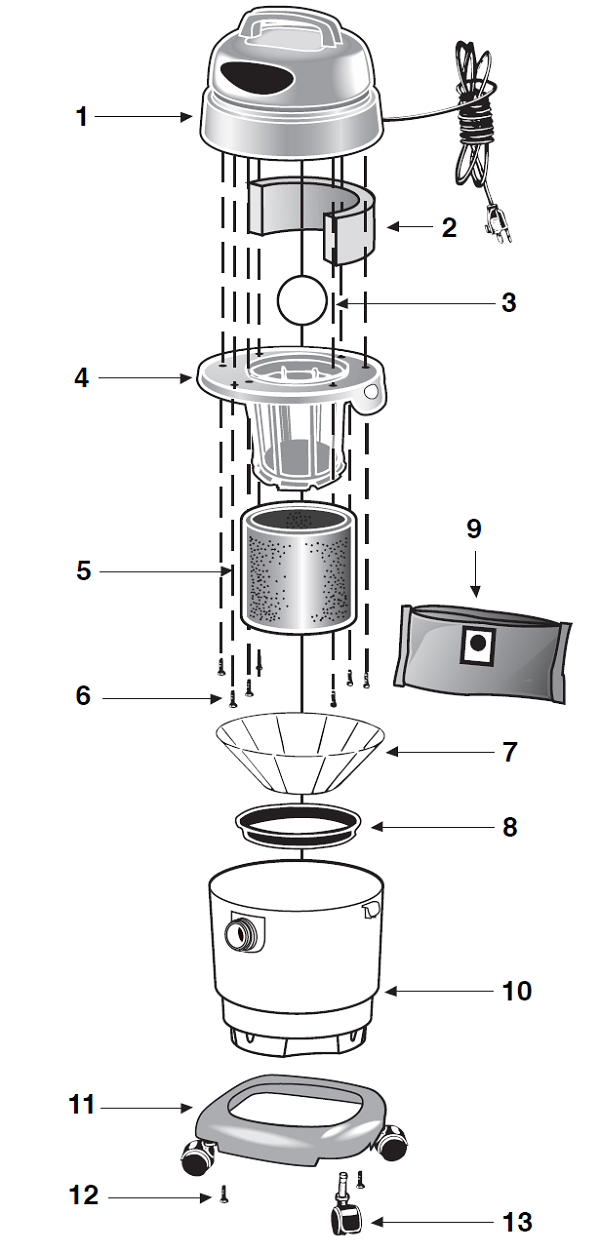

# Part image Description SKU Price
01Not AvailableShop-Vac Power Unit Assembly SV-8110497Not Available
02Not AvailableShop-Vac Foam Insert SV-1290508Not Available
04Not AvailableShop-Vac Lid Cage SV-3181622Not Available
05Not AvailableShop-Vac Foam Sleeve SV-9058500Not Available
06Not AvailableShop-Vac Screw Hex Head #10 x 3/4 Type AB SV-1516599Not Available
07Not AvailableShop-Vac Reusable Dry Filter SV-9010700Not Available
08Not AvailableShop-Vac Filter Ring SV-3006500Not Available
09Not AvailableShop-Vac Collection Filter Bag SV-9066900Not Available
10Not AvailableShop-Vac Tank Assembly SV-3151497Not Available
11Not AvailableShop-Vac Dolly SV-3153602Not Available
12Not AvailableShop-Vac Screw #8 x 1/2 Ph Pan Hd Type A SV-1501599Not Available
13Not AvailableShop-Vac Caster SV-6774220Not Available
