Schematic and parts list for: Shop-Vac Model: QL20ATS
This is a list of parts and a diagram and schematic for: Shop-Vac Model: QL20ATS
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: QL20ATS (6 Gal, 2.0 HP, Yellow and Black)
Popular Supplies

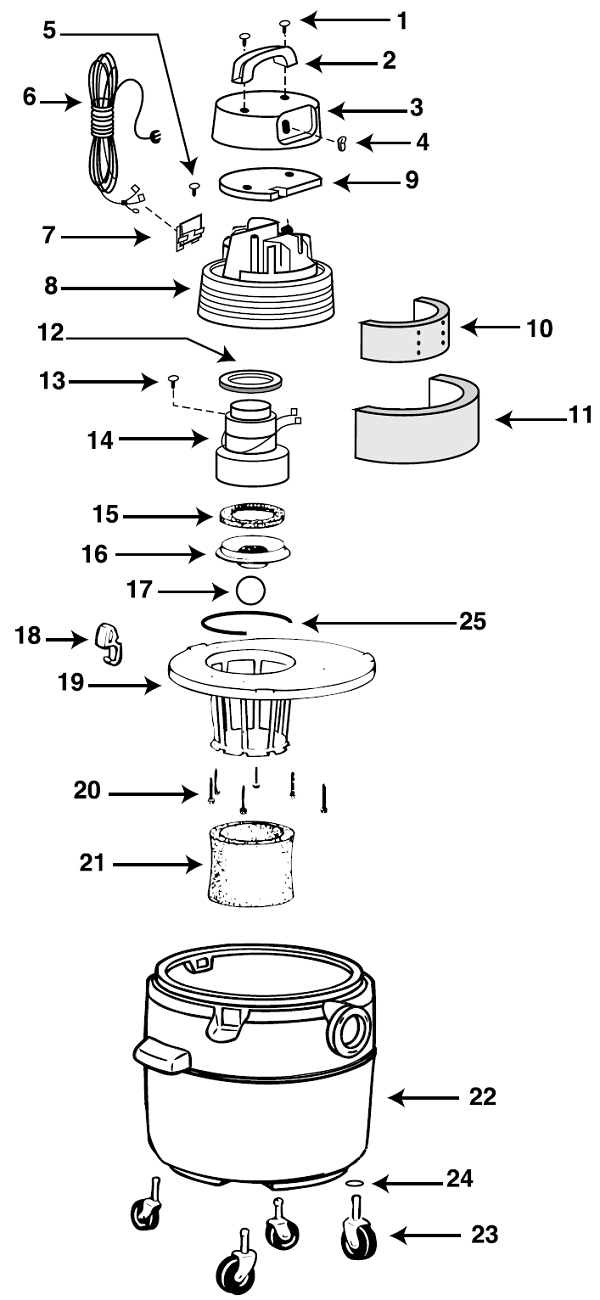

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac 1/4 x 3/4" lg. screw | SV-1514699 | Not Available |
| 02 | Not Available | Shop-Vac Top handle | SV-2410500 | Not Available |
| 03 | Not Available | Shop-Vac Motor housing cover | SV-1944675 | Not Available |
| 04 | Not Available | Shop-Vac Switch | SV-8231900 | Not Available |
| 05 | Not Available | Shop-Vac Screw 8 x 1/2 PH pan HD | SV-1500799 | Not Available |
| 06 | Not Available | Shop-Vac Power cord | SV-2580027 | Not Available |
| 07 | Not Available | Shop-Vac Cord retainer | SV-2411107 | Not Available |
| 08 | Not Available | Shop-Vac Motor housing | SV-2410714 | Not Available |
| 09 | Not Available | Shop-Vac Foam insert cover | SV-2412505 | Not Available |
| 10 | Not Available | Shop-Vac Inner housing acoustical foam | SV-1290400 | Not Available |
| 11 | Not Available | Shop-Vac Outer housing acoustical foam | SV-1290503 | Not Available |
| 12 | Not Available | Shop-Vac Upper motor gasket | SV-2070000 | Not Available |
| 13 | Not Available | Shop-Vac #10 - 24 x 1/2" lg. ground screw | SV-1700899 | Not Available |
| 14 | Not Available | Shop-Vac Motor | SV-1940045 | Not Available |
| 15 | Not Available | Shop-Vac Lower motor gasket | SV-2071600 | Not Available |
| 16 | Not Available | Shop-Vac Grid plate | SV-8860700 | Not Available |
| 17 | Not Available | Shop-Vac Ball float | SV-0081100 | Not Available |
| 18 | Not Available | Shop-Vac Latch | SV-8550101 | Not Available |
| 19 | Not Available | Shop-Vac Lid/cage assembly | SV-1944676 | Not Available |
| 20 | Not Available | Shop-Vac #10 x 3/4" lg. screw | SV-1503999 | Not Available |
| 21 |  | Filter, Foam Sleeve Wet/Dry Type R Ea Part Number: 90585-00 for Shop Vac | 9058500 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Shop-Vac Tank assembly | SV-1944677 | Not Available |
| 23 | Not Available | Shop-Vac Caster | SV-6773800 | Not Available |
| 24 | Not Available | Shop-Vac Flat washer | SV-0704399 | Not Available |
| 25 | Not Available | Shop-Vac Strip gasket | SV-2071100 | Not Available |
