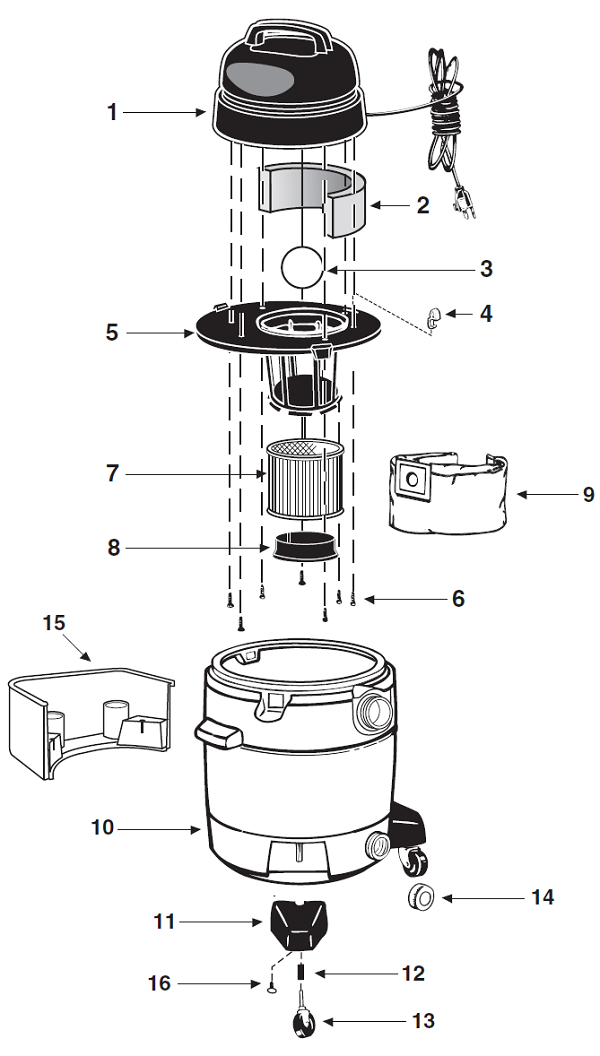

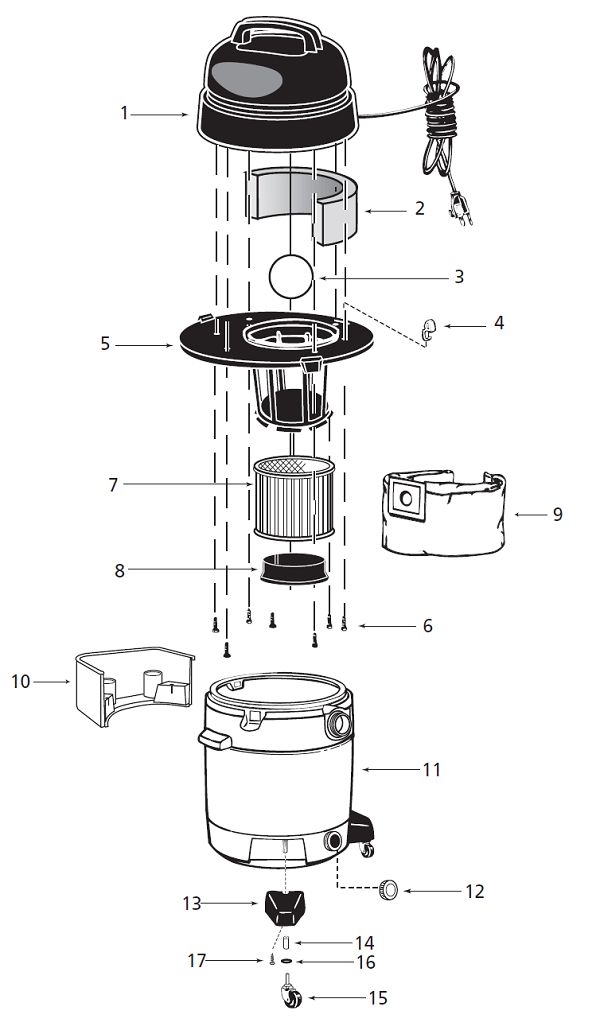

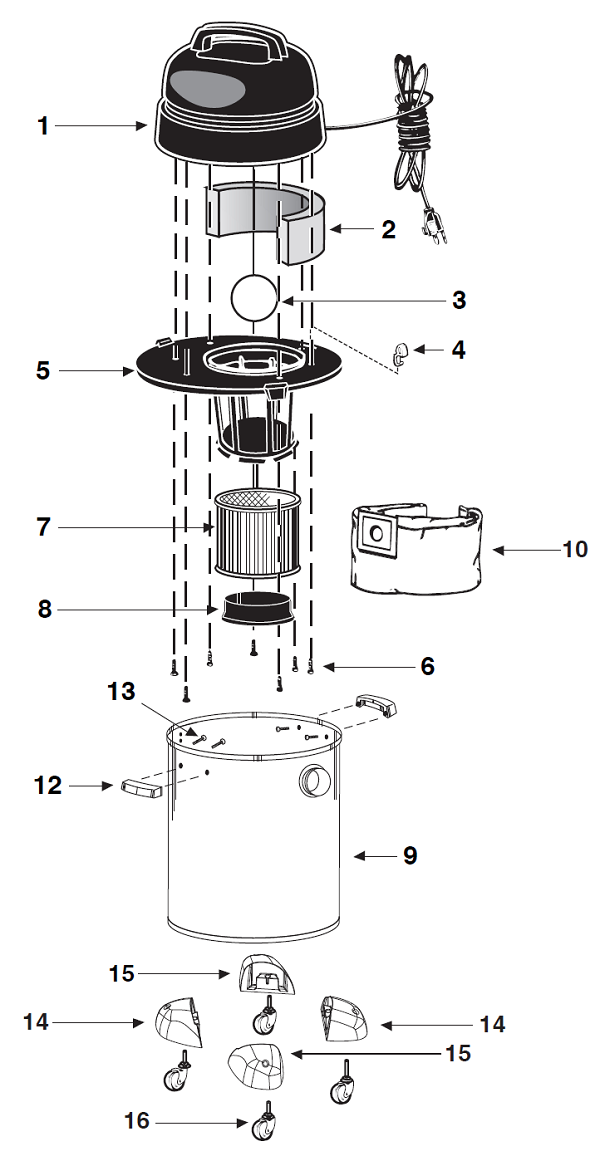

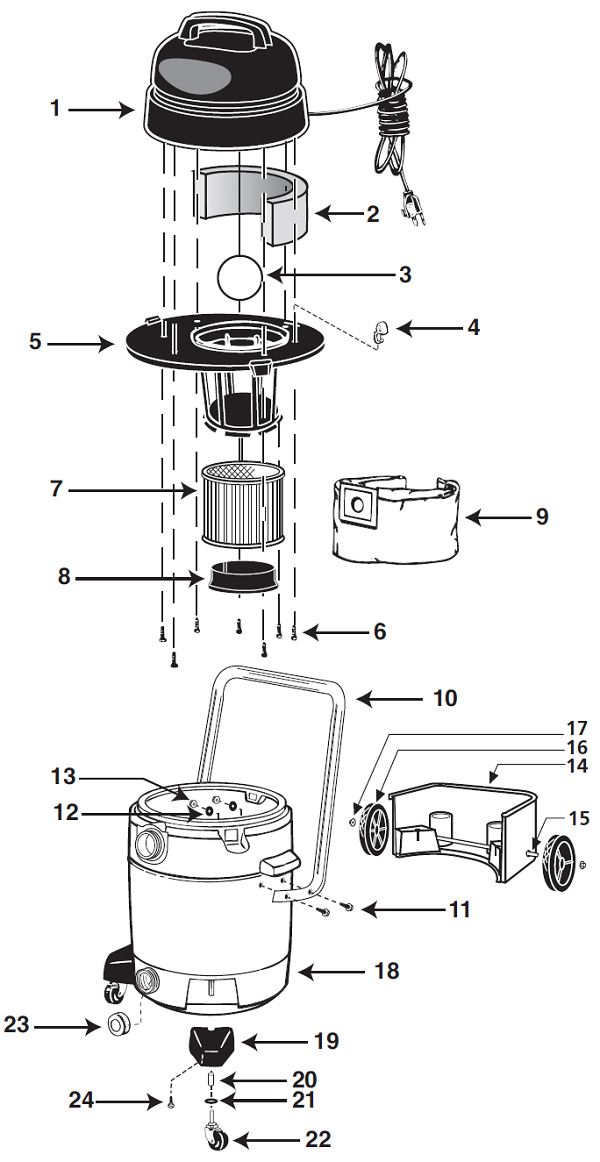

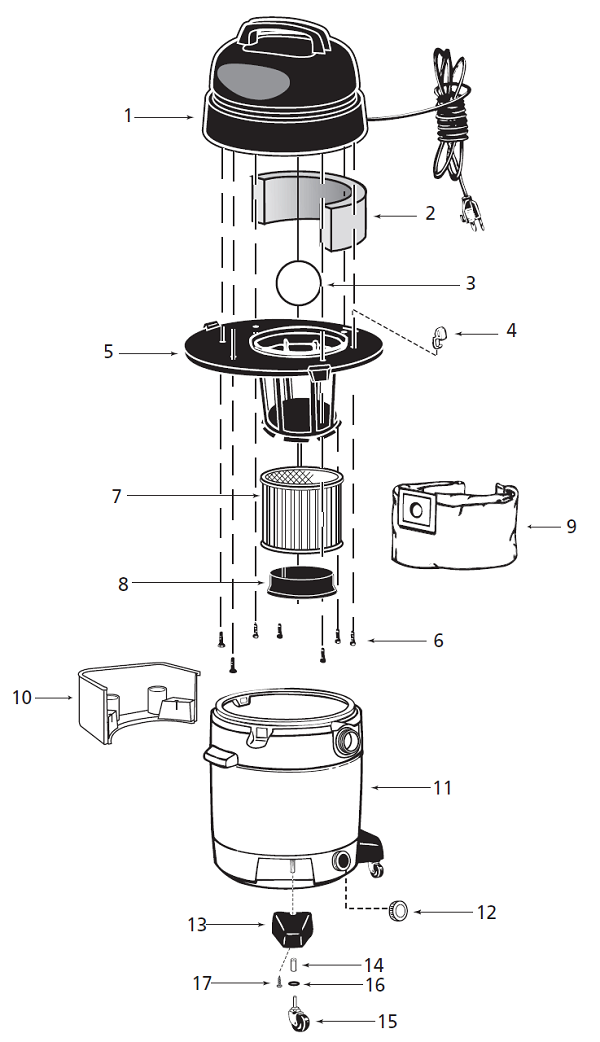

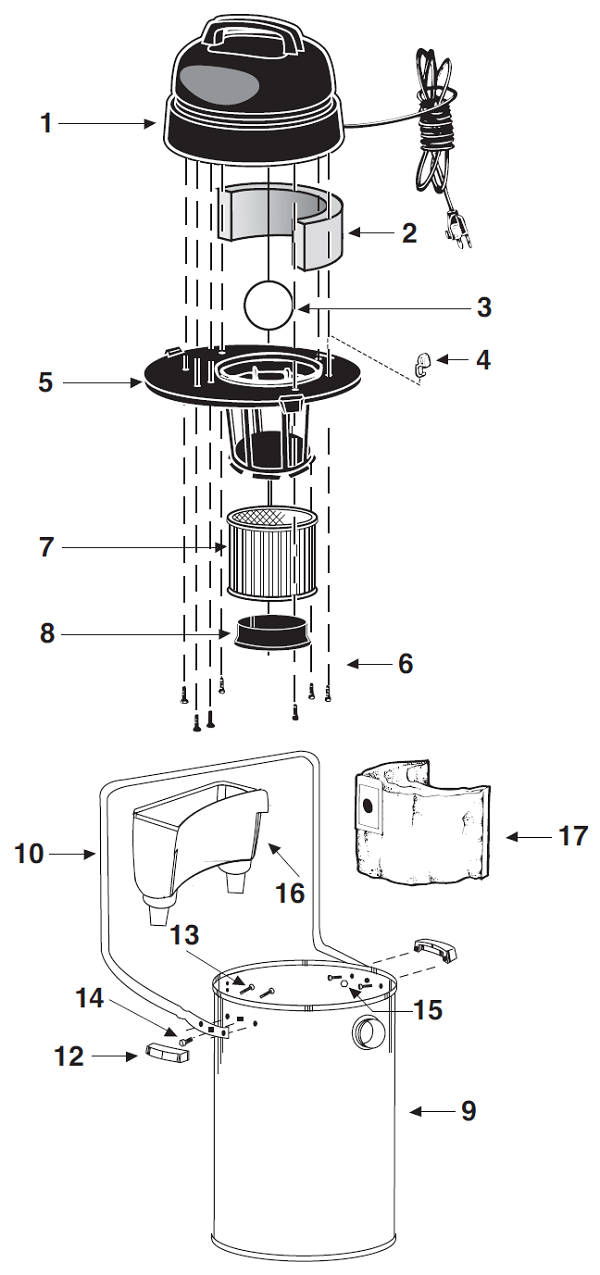

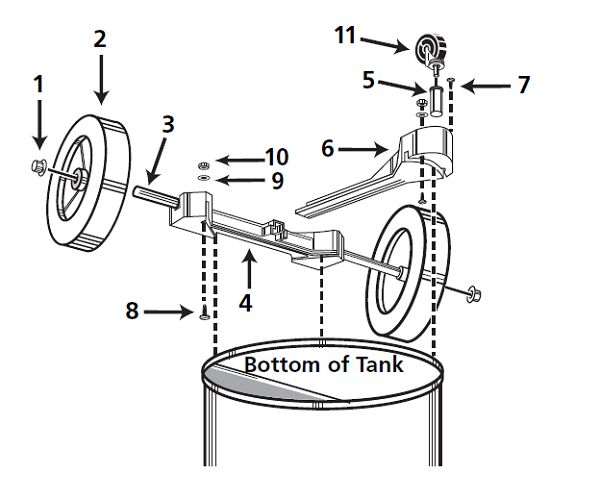

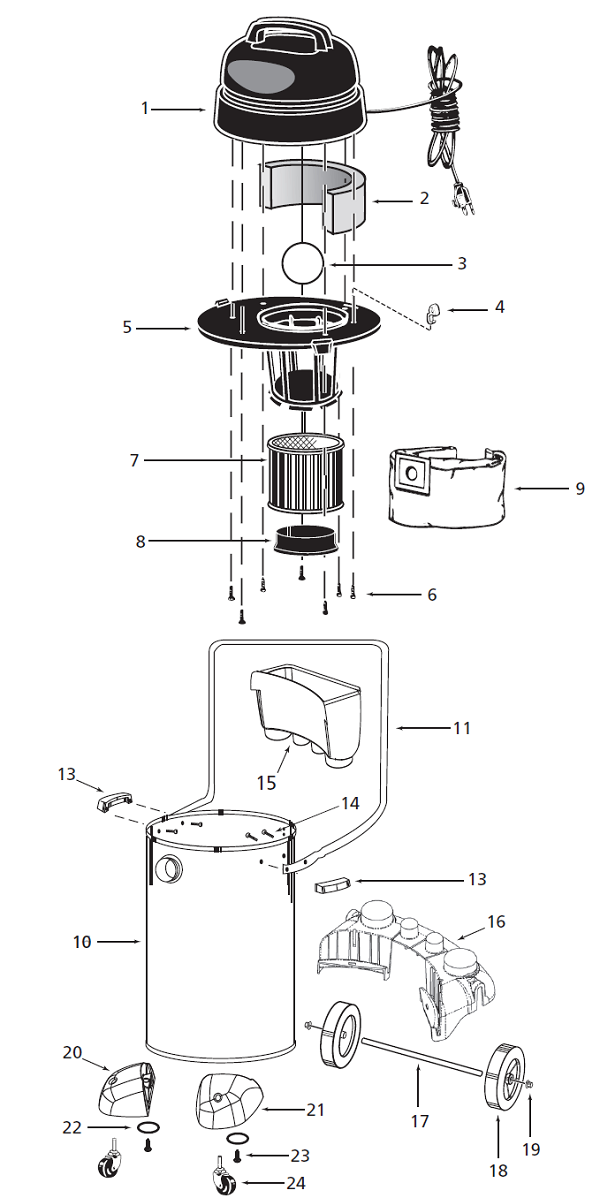

Schematic and parts list for: Shop-Vac Model: QPL650
This is a list of parts and a diagram and schematic for: Shop-Vac Model: QPL650
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: QPL650 (10 Gal, 6.5 HP, Stainless Steel with 3-Wheel Dolly and Basket on Handle)
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Power Unit Assembly | SV-1944302 | Not Available |
| 02 | Not Available | Shop-Vac Foam Insert | SV-1290508 | Not Available |
| 03 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 04 | Not Available | Shop-Vac Lid Latch | SV-8550101 | Not Available |
| 05 | Not Available | Shop-Vac Lid Cage & Latch Assembly | SV-8988724 | Not Available |
| 06 | Not Available | Shop-Vac Screw Hex Head #10 - 3/4" AB | SV-1503999 | Not Available |
| 07 | Not Available | Shop-Vac Cartridge Filter | SV-9030400 | Not Available |
| 08 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 09 | Not Available | Shop-Vac Tank Assembly | SV-1091997 | Not Available |
| 10 | Not Available | Shop-Vac Carriage Handle | SV-2088200 | Not Available |
| 11 | Not Available | Shop-Vac Handle and Hardware Pkg. (Includes 12-15) | SV-9355596 | Not Available |
| 12 | Not Available | Shop-Vac Side Tank Handle | SV-9355100 | Not Available |
| 13 | Not Available | Shop-Vac Screw #10 x 3/4" Hex Head | SV-1503999 | Not Available |
| 14 | Not Available | Shop-Vac Bolt 1/4 - 20 x 1/2" | SV-6401299 | Not Available |
| 15 | Not Available | Shop-Vac Hex Nut 1/4 - 20 | SV-1300199 | Not Available |
| 16 | Not Available | Shop-Vac Accessory Basket | SV-7442902 | Not Available |
| 17 | Not Available | Shop-Vac Collection Bag | SV-9190610 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Power Unit Assembly | SV-1944302 | Not Available |
| 02 | Not Available | Shop-Vac Foam Insert | SV-1290508 | Not Available |
| 03 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 04 | Not Available | Shop-Vac Lid Latch | SV-8550101 | Not Available |
| 05 | Not Available | Shop-Vac Lid Cage & Latch Assembly | SV-8988724 | Not Available |
| 06 | Not Available | Shop-Vac Screw 10 - 3/4" Trilobe T25 Head | SV-1516599 | Not Available |
| 07 | Not Available | Shop-Vac Cartridge Filter | SV-9030400 | Not Available |
| 08 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 09 | Not Available | Shop-Vac High Quality Collection Filter Bag | SV-9190610 | Not Available |
| 10 | Not Available | Shop-Vac Tank Assembly | SV-1049597 | Not Available |
| 11 | Not Available | Shop-Vac Carriage Handle | SV-2081101 | Not Available |
| 12 | Not Available | Shop-Vac Handle and Hardware Package (includes13-14) | SV-9355196 | Not Available |
| 13 | Not Available | Shop-Vac Side Tank Handle | SV-9355100 | Not Available |
| 14 | Not Available | Shop-Vac Screw #10 x 3/4" Hex head | SV-1503999 | Not Available |
| 15 | Not Available | Shop-Vac Accessory Basket | SV-9064800 | Not Available |
| 16 | Not Available | Shop-Vac Rear Wheel Dolly | SV-3487500 | Not Available |
| 17 | Not Available | Shop-Vac Axle | SV-2442400 | Not Available |
| 18 | Not Available | Shop-Vac 8" Wheel | SV-2425010 | Not Available |
| 19 | Not Available | Shop-Vac Cap Nut | SV-4300299 | Not Available |
| 20 | Not Available | Shop-Vac Caster Foot A | SV-8568100 | Not Available |
| 21 | Not Available | Shop-Vac Caster Foot B | SV-8568110 | Not Available |
| 22 | Not Available | Shop-Vac Washer | SV-0704399 | Not Available |
| 23 | Not Available | Shop-Vac Screw #10 x 1" SL Hex Head | SV-1509699 | Not Available |
| 24 | Not Available | Shop-Vac Caster | SV-6773900 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Power Unit Assembly | SV-1944302 | Not Available |
| 02 | Not Available | Shop-Vac Foam Insert | SV-1290508 | Not Available |
| 03 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 04 | Not Available | Shop-Vac Lid Latch | SV-8550101 | Not Available |
| 05 | Not Available | Shop-Vac Lid Cage & Latch Assembly | SV-8965724 | Not Available |
| 06 | Not Available | Shop-Vac Screw Hex Hd # 10 - 3/4 AB | SV-1503999 | Not Available |
| 07 | Not Available | Shop-Vac Cartridge Filter | SV-9030400 | Not Available |
| 08 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 09 | Not Available | Shop-Vac High Quality Collection Filter Bag | SV-9190610 | Not Available |
| 10 | Not Available | Shop-Vac Tank Assembly | SV-1045897 | Not Available |
| 11 | Not Available | Shop-Vac Caster Foot | SV-8565000 | Not Available |
| 12 | Not Available | Shop-Vac Retainer | SV-8565500 | Not Available |
| 13 | Not Available | Shop-Vac Caster | SV-6772200 | Not Available |
| 14 | Not Available | Shop-Vac Drain Cap | SV-1062020 | Not Available |
| 15 | Not Available | Shop-Vac Accessory Caddy | SV-8564000 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Power Unit Assembly | SV-1944302 | Not Available |
| 02 | Not Available | Shop-Vac Foam Insert | SV-1290508 | Not Available |
| 03 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 04 | Not Available | Shop-Vac Filter Cage | SV-8790100 | Not Available |
| 05 | Not Available | Shop-Vac Cover | SV-8987711 | Not Available |
| 06 | Not Available | Shop-Vac Screw Hex Head #10 x 1" Type AB | SV-1509699 | Not Available |
| 07 | Not Available | Shop-Vac Cartridge Filter | SV-9030400 | Not Available |
| 08 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 09 | Not Available | Shop-Vac Collection Bag | SV-9067300 | Not Available |
| 10 | Not Available | Shop-Vac Tank Assembly | SV-1020097 | Not Available |
| 11 | Not Available | Shop-Vac Tank Clamp | SV-0140300 | Not Available |
| 12 | Not Available | Shop-Vac Rivet | SV-0300299 | Not Available |
| 13 | Not Available | Shop-Vac Push-In Fastener | SV-7100199 | Not Available |
| 14 | Not Available | Shop-Vac Carriage Handle | SV-2088100 | Not Available |
| 15 | Not Available | Shop-Vac Handle & Hardware Package (Includes 16-19) | SV-9355596 | Not Available |
| 16 | Not Available | Shop-Vac Side Tank Handle | SV-9355100 | Not Available |
| 17 | Not Available | Shop-Vac Screw Hex Head #10 x 3/4" | SV-1503999 | Not Available |
| 18 | Not Available | Shop-Vac Bolt 1/4 - 20 x 1/2" | SV-6401299 | Not Available |
| 19 | Not Available | Shop-Vac Hex Nut 1/4 - 20 | SV-1300199 | Not Available |
| 20 | Not Available | Shop-Vac Accessory Basket | SV-7442902 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Cap Nut | SV-4300299 | Not Available |
| 02 | Not Available | Shop-Vac 10" Wheel | SV-2425210 | Not Available |
| 03 | Not Available | Shop-Vac Axle | SV-2442100 | Not Available |
| 04 | Not Available | Shop-Vac Rear Frame | SV-9393100 | Not Available |
| 05 | Not Available | Shop-Vac Caster Socket | SV-7540500 | Not Available |
| 06 | Not Available | Shop-Vac Front Frame | SV-9393000 | Not Available |
| 07 | Not Available | Shop-Vac Screw #8 x 1/2" | SV-1501599 | Not Available |
| 08 | Not Available | Shop-Vac Machine Screw 1/4 - 20 x 3/4" | SV-0902999 | Not Available |
| 09 | Not Available | Shop-Vac Flatwasher 1/4" | SV-0700399 | Not Available |
| 10 | Not Available | Shop-Vac Hex Nut 1/4 - 20 | SV-1300199 | Not Available |
| 11 | Not Available | Shop-Vac Caster | SV-6773700 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Power Unit Assembly | SV-8118297 | Not Available |
| 02 | Not Available | Shop-Vac Foam Insert | SV-1290508 | Not Available |
| 03 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 04 | Not Available | Shop-Vac Lid Latch | SV-8550101 | Not Available |
| 05 | Not Available | Shop-Vac Lid Cage & Latch Assembly | SV-8988724 | Not Available |
| 06 | Not Available | Shop-Vac Screw 10 x 3/4" Trilobe T25 Head | SV-1516599 | Not Available |
| 07 | Not Available | Shop-Vac Cartridge Filter | SV-9030400 | Not Available |
| 08 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 09 | Not Available | Shop-Vac High Quality Collection Filter Bag | SV-9067300 | Not Available |
| 10 | Not Available | Shop-Vac Carriage Handle | SV-2087900 | Not Available |
| 11 | Not Available | Shop-Vac Screw 1/4" - 20 x 3/4" Slotted Truss HD | SV-0810899 | Not Available |
| 12 | Not Available | Shop-Vac Sealing Washer | SV-0701299 | Not Available |
| 13 | Not Available | Shop-Vac 1/4" - 20 Locknut - Heavy Hex HD | SV-1304599 | Not Available |
| 14 | Not Available | Shop-Vac Accessory Caddy | SV-8564220 | Not Available |
| 15 | Not Available | Shop-Vac Axle | SV-2442200 | Not Available |
| 16 | Not Available | Shop-Vac 10" Black Wheel | SV-2425200 | Not Available |
| 17 | Not Available | Shop-Vac Cap Nut | SV-4300299 | Not Available |
| 18 | Not Available | Shop-Vac Tank Assembly | SV-8493697 | Not Available |
| 19 | Not Available | Shop-Vac Caster Foot | SV-8565100 | Not Available |
| 20 | Not Available | Shop-Vac Caster Retainer | SV-8565700 | Not Available |
| 21 | Not Available | Shop-Vac Flatwasher | SV-0704399 | Not Available |
| 22 | Not Available | Shop-Vac Caster | SV-6773700 | Not Available |
| 23 | Not Available | Shop-Vac Drain Cap | SV-1062020 | Not Available |
| 24 | Not Available | Shop-Vac Screw Hex Hd # 10 - 3/4 AB | SV-1503999 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Power Unit Assembly | SV-1944302 | Not Available |
| 02 | Not Available | Shop-Vac Foam Insert | SV-1290508 | Not Available |
| 03 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 04 | Not Available | Shop-Vac Lid Latch | SV-8550101 | Not Available |
| 05 | Not Available | Shop-Vac Lid Cage & Latch Assembly | SV-8988724 | Not Available |
| 06 | Not Available | Shop-Vac Screw #10 - 3/4" Trilobe | SV-1516599 | Not Available |
| 07 | Not Available | Shop-Vac Cartridge Filter | SV-9030400 | Not Available |
| 08 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 09 | Not Available | Shop-Vac High Quality Collection Filter Bag | SV-9067300 | Not Available |
| 10 | Not Available | Shop-Vac Accessory Caddy | SV-8564202 | Not Available |
| 11 | Not Available | Shop-Vac Tank Assembly | SV-8493597 | Not Available |
| 12 | Not Available | Shop-Vac Drain Cap | SV-1062020 | Not Available |
| 13 | Not Available | Shop-Vac Caster Foot | SV-8565100 | Not Available |
| 14 | Not Available | Shop-Vac Caster Retainer | SV-8565700 | Not Available |
| 15 | Not Available | Shop-Vac Caster | SV-6773900 | Not Available |
| 16 | Not Available | Shop-Vac Flatwasher | SV-0704399 | Not Available |
| 17 | Not Available | Shop-Vac Screw Hex Head #10-3/4" AB | SV-1503999 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Power Unit Assembly | SV-1944302 | Not Available |
| 02 | Not Available | Shop-Vac Foam Insert | SV-1290508 | Not Available |
| 03 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 04 | Not Available | Shop-Vac Lid Latch | SV-8550101 | Not Available |
| 05 | Not Available | Shop-Vac Lid Cage & Latch Assembly | SV-8988724 | Not Available |
| 06 | Not Available | Shop-Vac Screw Hex Head #10 - 3/4" AB | SV-1516599 | Not Available |
| 07 | Not Available | Shop-Vac Cartridge Filter | SV-9030400 | Not Available |
| 08 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 09 | Not Available | Shop-Vac High Quality Collection Filter Bag | SV-9067300 | Not Available |
| 10 | Not Available | Shop-Vac Accessory Caddy | SV-8564202 | Not Available |
| 11 | Not Available | Shop-Vac Tank Assembly | SV-8493697 | Not Available |
| 12 | Not Available | Shop-Vac Drain Cap | SV-1062020 | Not Available |
| 13 | Not Available | Shop-Vac Caster Foot | SV-8565100 | Not Available |
| 14 | Not Available | Shop-Vac Caster Retainer | SV-8565700 | Not Available |
| 15 | Not Available | Shop-Vac Caster | SV-6773900 | Not Available |
| 16 | Not Available | Shop-Vac Flatwasher | SV-0704399 | Not Available |
| 17 | Not Available | Shop-Vac Screw 10 x 3/4" SL Hex Head | SV-1503999 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Power Unit Assembly | SV-1944302 | Not Available |
| 02 | Not Available | Shop-Vac Foam Insert | SV-1290508 | Not Available |
| 03 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 04 | Not Available | Shop-Vac Lid Latch | SV-8550101 | Not Available |
| 05 | Not Available | Shop-Vac Lid Cage & Latch Assembly | SV-8965724 | Not Available |
| 06 | Not Available | Shop-Vac Screw Hex Hd # 10 - 3/4 AB | SV-1503999 | Not Available |
| 07 | Not Available | Shop-Vac Cartridge Filter | SV-9030400 | Not Available |
| 08 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 09 | Not Available | Shop-Vac Tank Assembly | SV-5068797 | Not Available |
| 10 | Not Available | Shop-Vac High Efficiency Collection Filter Bag | SV-9190510 | Not Available |
| 11 | Not Available | Shop-Vac Handle and Hardware package | SV-9355196 | Not Available |
| 12 | Not Available | Shop-Vac Side Tank Handle | SV-9355100 | Not Available |
| 13 | Not Available | Shop-Vac #10 x 3/4' Screw Hex Head | SV-1503999 | Not Available |
| 14 | Not Available | Shop-Vac Caster Foot A | SV-8568201 | Not Available |
| 15 | Not Available | Shop-Vac Caster Foot B | SV-8568211 | Not Available |
| 16 | Not Available | Shop-Vac Caster | SV-6771200 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Power Unit Assembly | SV-1944302 | Not Available |
| 02 | Not Available | Shop-Vac Foam Insert | SV-1290508 | Not Available |
| 03 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 04 | Not Available | Shop-Vac Lid Latch | SV-8550101 | Not Available |
| 05 | Not Available | Shop-Vac Lid Cage & Latch Assembly | SV-8965724 | Not Available |
| 06 | Not Available | Shop-Vac Screw Hex Hd # 10 - 3/4 Trilobe | SV-1516599 | Not Available |
| 07 | Not Available | Shop-Vac Cartridge Filter | SV-9030400 | Not Available |
| 08 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 09 | Not Available | Shop-Vac High Quality Collection Filter Bag | SV-9190610 | Not Available |
| 10 | Not Available | Shop-Vac Tank Assembly | SV-1047697 | Not Available |
| 11 | Not Available | Shop-Vac Caster Foot | SV-8565000 | Not Available |
| 12 | Not Available | Shop-Vac Retainer | SV-8565500 | Not Available |
| 13 | Not Available | Shop-Vac Caster | SV-6772200 | Not Available |
| 14 | Not Available | Shop-Vac Drain Cap | SV-1062020 | Not Available |
| 15 | Not Available | Shop-Vac Accessory Caddy | SV-8564000 | Not Available |
| 16 | Not Available | Shop-Vac Screw Hex Hd #10 - 3/4 AB | SV-1503999 | Not Available |
Report errors on this page HERE
