Schematic and parts list for: Windsor Model: Recover 7
This is a list of parts and a diagram and schematic for: Windsor Model: Recover 7
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Recover 7
![](https://www.vacuumsrus.com/wp-content/uploads/2023/11/vacuums-Recover7_Top_S1.jpg)
# | Part image | Description | SKU | Price |
XX | Not Available | Windsor Cover Complete Only For Replacement Nt 2 | 40663240 | Not Available |
1 | Not Available | Windsor Pushbutton | 53240400 | Not Available |
3 | Not Available | Windsor Strain Relief | 50323630 | Not Available |
4 | Not Available | Windsor Cable With Plug | 66483700 | Not Available |
5 | Not Available | Windsor Electrical Small Parts | 48393700 | Not Available |
6 | Not Available | Windsor Switch On/Off | 66304370 | Not Available |
7 | Not Available | Windsor Spring Switch | 53324570 | Not Available |
8 | Not Available | Windsor Moulded Part | 50324330 | Not Available |
9 | Not Available | Windsor Handhold | 53217110 | Not Available |
10 | Not Available | Windsor Screw 4X25 109R2R (Kin6Rd) | 73030840 | Not Available |
11 | Not Available | Windsor Cover | 50690060 | Not Available |
12 | Not Available | Windsor Sound Insulation Set | 62864330 | Not Available |

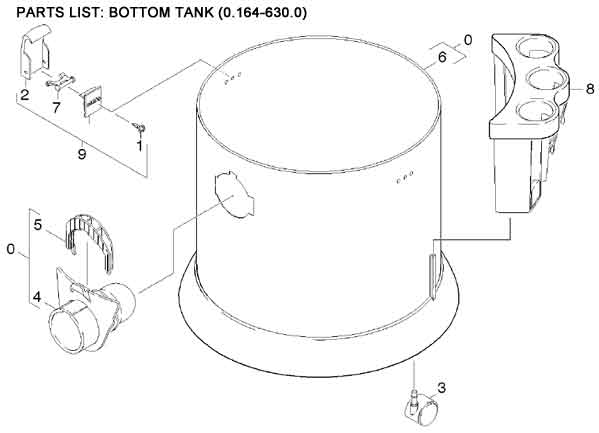

![](https://www.vacuumsrus.com/wp-content/uploads/2023/11/vacuums-Recover7_Bottom_Tank1_S2.jpg)
# | Part image | Description | SKU | Price |
XX | Not Available | Windsor Tank Complete Recover 7 Ral 5005 | 40706460 | Not Available |
1 | Not Available | Windsor Screw 4X12 109R2R (In6Rd) | 73031060 | Not Available |
2 | Not Available | Windsor Locking Hook Oem | 94118010 | Not Available |
3 | Not Available | Windsor Castor D 42 | 64353530 | Not Available |
4 | Not Available | Windsor Suction Connection | 50323620 | Not Available |
5 | Not Available | Windsor Holder Suction Connection | 50446360 | Not Available |
6 | Not Available | Windsor Tank Complete Recover 7 Ral 5005 | 40706460 | Not Available |
7 | Not Available | Windsor Joint Closure | 69032940 | Not Available |
8 | Not Available | Windsor Holder Accessories Dn 35 | 50324300 | Not Available |
9 | Not Available | Windsor Holder Closure Complete Oem | 94181560 | Not Available |

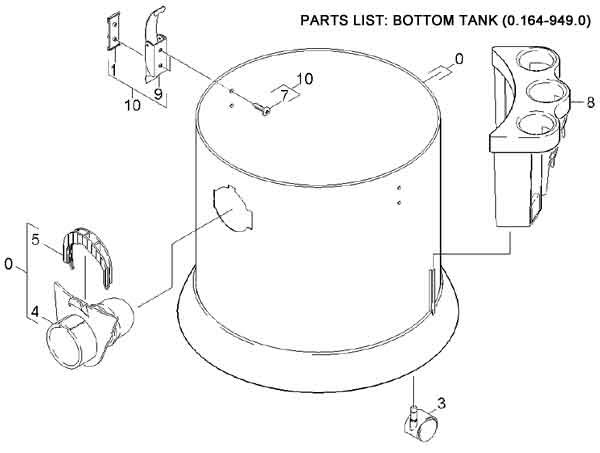

![](https://www.vacuumsrus.com/wp-content/uploads/2023/11/vacuums-Recover7_Bottom_Tank2_S3.jpg)
# | Part image | Description | SKU | Price |
XX | Not Available | Windsor Tank Complete Recover 7 Ral 5005 | 40663240 | Not Available |
1 | Not Available | Windsor Holder Closure | 53240400 | Not Available |
3 | Not Available | Windsor Castor D 42 | 50323630 | Not Available |
4 | Not Available | Windsor Suction Connection | 66483700 | Not Available |
5 | Not Available | Windsor Holder Suction Connection | 48393700 | Not Available |
7 | Not Available | Windsor Screw 4X12-A2-70 (In6Rd) | 66304370 | Not Available |
8 | Not Available | Windsor Holder Accessories Dn 35 | 53324570 | Not Available |
9 | Not Available | Windsor Stockpiling Discontinued | 50324330 | Not Available |
10 | Not Available | Windsor Locking Clip Completely | 53217110 | Not Available |

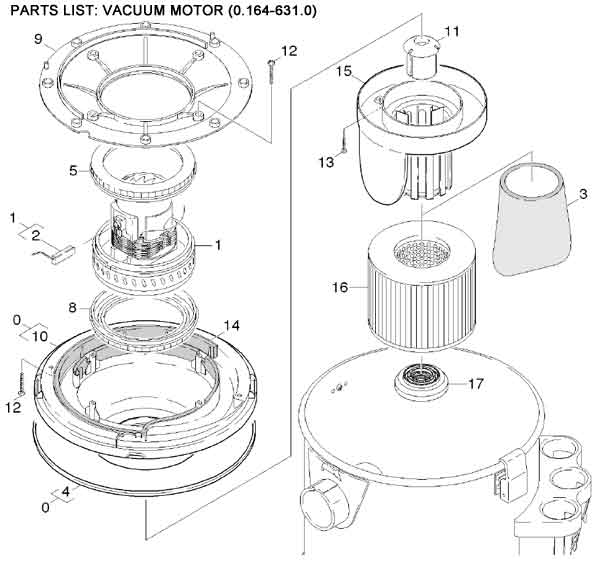

![](https://www.vacuumsrus.com/wp-content/uploads/2023/11/vacuums-Recover7_Vacuum_Motor_S4.jpg)
# | Part image | Description | SKU | Price |
XX | Not Available | Windsor Motor Flange Complete | 41221220 | Not Available |
1 | Not Available | Windsor Vacuum Motor 120V | 64901770 | Not Available |
2 | Not Available | Windsor Carbon Brush Only For Replacement | 66102520 | Not Available |
3 | Not Available | Windsor Filter | 57315950 | Not Available |
4 | Not Available | Windsor Seal Flange Motor | 53635860 | Not Available |
5 | Not Available | Windsor Seal Motor | 69033000 | Not Available |
8 | Not Available | Windsor Seal Motor | 69032460 | Not Available |
9 | Not Available | Windsor Flange Water | 51224250 | Not Available |
10 | Not Available | Windsor Flange Motor | 51224150 | Not Available |
11 | Not Available | Windsor Float | 55850380 | Not Available |
12 | Not Available | Windsor Screw 4X 35 -10.9-R2R (K-In6Rd) | 73030850 | Not Available |
13 | Not Available | Windsor Screw 4X16-St-10.9-R2R (In6Rd) | 73032050 | Not Available |
14 | Not Available | Windsor Sound Insulation Set | 62864330 | Not Available |
15 | Not Available | Windsor Filtering Basket | 94116310 | Not Available |
16 | Not Available | Windsor Cartridge Filter | 64147890 | Not Available |
17 | Not Available | Windsor Holder Filtering Basket | 94119540 | Not Available |
