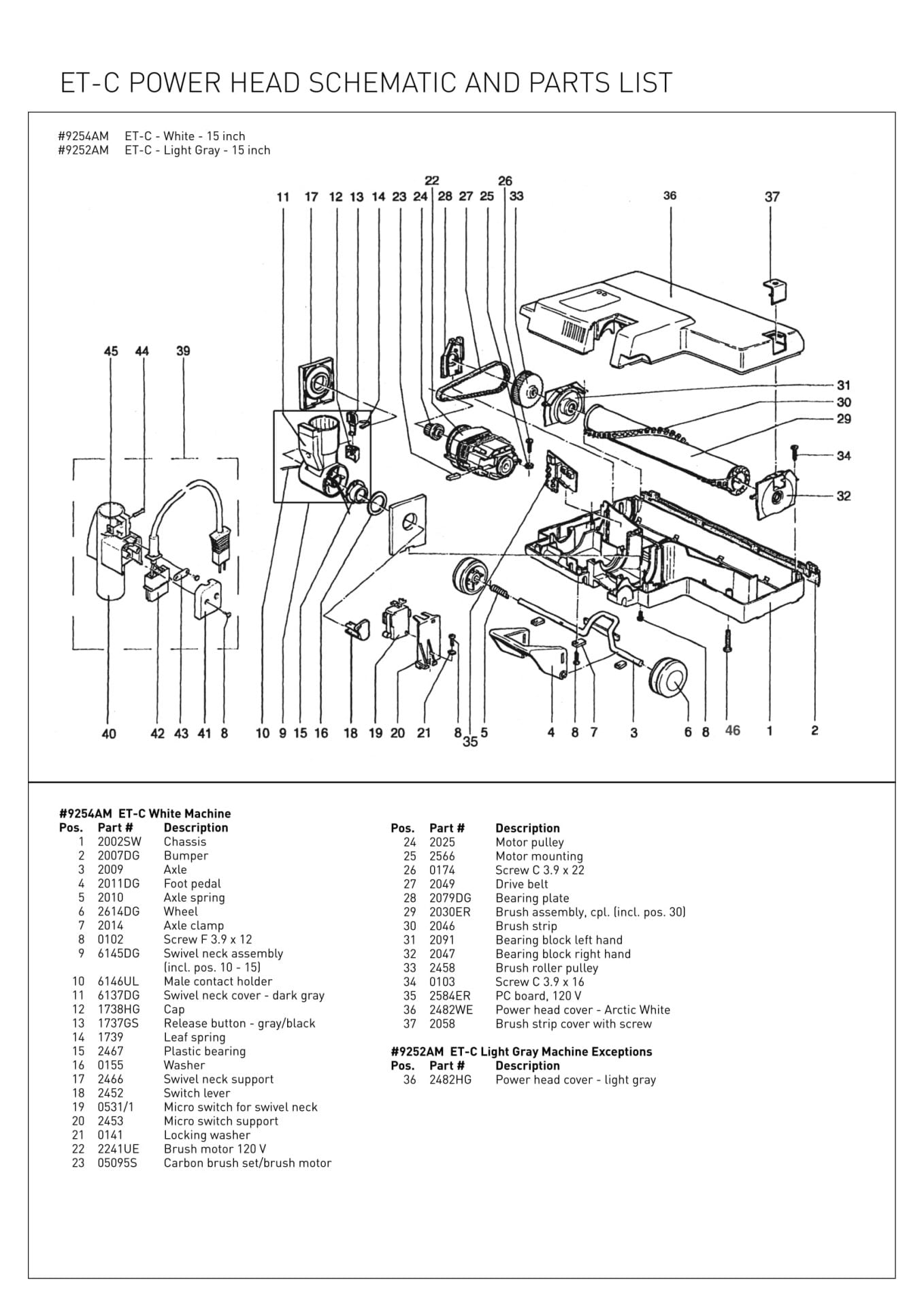

Schematic Parts Book for Sebo Model: ET-C Power Heads

Sebo ET-C Power Heads Schematic Parts List

Part # Part Description
2614DG Wheel, complete, for ET-C (dark gray)
0155 Washer ET-C1 (single), for 370 ELECTRONIC and ET-C
0155ER Washer ET-C1 (10 pack), for 370 ELECTRONIC and ET-C
2466 Swivel Neck Support, for ET-C
6137HG Swivel Neck Cover, for ET-C (light gray)
6137DG Swivel Neck Cover, for ET-C (dark gray)
6145DG Swivel Neck Assembly, for ET-C (dark gray)
2452 Switch Lever, for ET-C
0102 Screw F 3.9 x 13 DIN 7981 (single), for X, G, and 370 series, 300/350, C and D series, ET-C, ET-H, and DISCO
0102ER Screw F 3.9 x 13 DIN 7981 (10 pack), for X, G, and 370 series, 300/350, C and D series, ET-C, ET-H, and DISCO
0174 Screw C 3.9 x 22 DIN 7981 (single), for 370 ELECTRONIC and ET-C
0174ER Screw C 3.9 x 22 DIN 7981 (10 pack), for 370 ELECTRONIC and ET-C
0103 Screw C 3.9 x 16 DIN 7981 (single), for X series, FELIX series, G series, 370 series, ET-C, and duo
0103ER Screw C 3.9 x 16 DIN 7981 (10 pack), for X series, FELIX series, G series, 370 series, ET-C, and duo
0110TL Screw AM5 x 25 DIN 7985 (single), for ET-C
0110TER Screw AM5 x 25 DIN 7985 (10 pack), for ET-C
1737HG Release Button with leaf spring, for ET-1, ET-C, and FELIX White swivel necks (light gray)
1737GS Release Button with leaf spring, for ET-1, ET-2, ET-C, ET-H, and DISCO swivel necks (gray black)
1738HG Release Button Cap, for ET-C (light gray)
1738GS Release Button Cap, for ET-C (gray black)
1738DG Release Button Cap (dark gray)
2002DG Refer to 2002SW Chassis w/metal bottom plate set, for ET-C (dark gray)
2482WE Power Head Cover, complete, for ET-C (arctic white)
2467 Plastic Bearing Inside, for 370 ELECTRONIC and ET-C
2584ER P.C. Board, 120V, for ET-C
2025 Motor Pulley, for 370 ELECTRONIC and ET-C
2566 Motor Mounting, for ET-C
2453 Micro Switch Support, for ET-C
0531/1 Micro safety switch, for 370 ELECTRONIC and ET-C
2005ER Metal Bottom Plate Set with ties, for ET-C and 370 ELECTRONIC
6146UL Male Contact Holder, for ET-C
0141 Locking Washer (single), for X1/X2/X4/X5, 370 ELECTRONIC, ET-C, and duo
0141ER Locking Washer (10 pack), for X1/X2/X4/X5, 370 ELECTRONIC, ET-C, and duo
1739 Leaf Spring, for switch lever, on K series and ET-C
2011DG Foot Pedal, for ET-C (dark gray)
2049 Drive Belt, for 370 ELECTRONIC and ET-C
05095S Carbon Brush Set-M. Ametek, for 2241UE brush motor (as of 2001), for 370 ELECTRONIC and ET-C
0512/1 Carbon Brush Set, for 2241ER brush motor (before 2001), for 370 ELECTRONIC and ET-C
2007DG Bumper, for ET-C (dark gray)
2058 Brush Strip Cover with screw, for ET-C
2030ER Brush Roller with strip, for 370 ELECTRONIC and ET-C
2458 Brush Roller Pulley, for 370 ELECTRONIC and ET-C
2241UE Brush Motor 120V/150W with pulley, for ET-C and 370 ELECTRONIC
2079DG Bearing Plate, for ET-C (dark gray)
2091 Bearing Block, L.H., for 370 ELECTRONIC and ET-C
2047 Bearing Block R.H., for 370 ELECTRONIC and ET-C
2010 Axle Spring, for X1, X2, X4, X5, G series, 370 ELECTRONIC, and ET-C
2009 Axle for ET-C
2014 Axle Clamp (single), for X1, X2, X4, X5, G series, 300/350, 370 series, and ET-C
2014ER Axle Clamp (10 pack), for X1, X2, X4, X5, G series, 300/350, 370 series, and ET-C
