Parts books and schematics for Simplicity a go-go
| # |

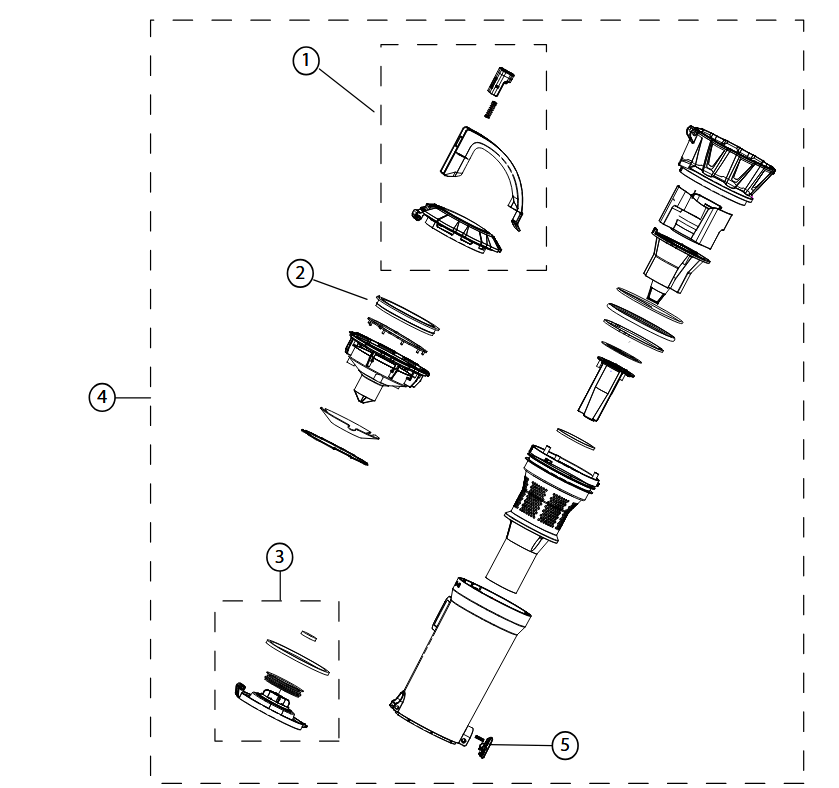

Part image |
Description |
SKU |
Price |
| 1 | Not Available | Dust Cup Lid Assembly | C413-15GR | Not Available |
|
| 2 | Not Available | Filter Set | SFA | Not Available |
|
| 3 | Not Available | Dust Cup Base Assembly | C413-05GR | Not Available |
|
| 4 | Not Available | Dust Cup Assembly | C413-16GR | Not Available |
|
| 5 | Not Available | Dust Cup Lower Latch | B413-25GR | Not Available |
|
| # |

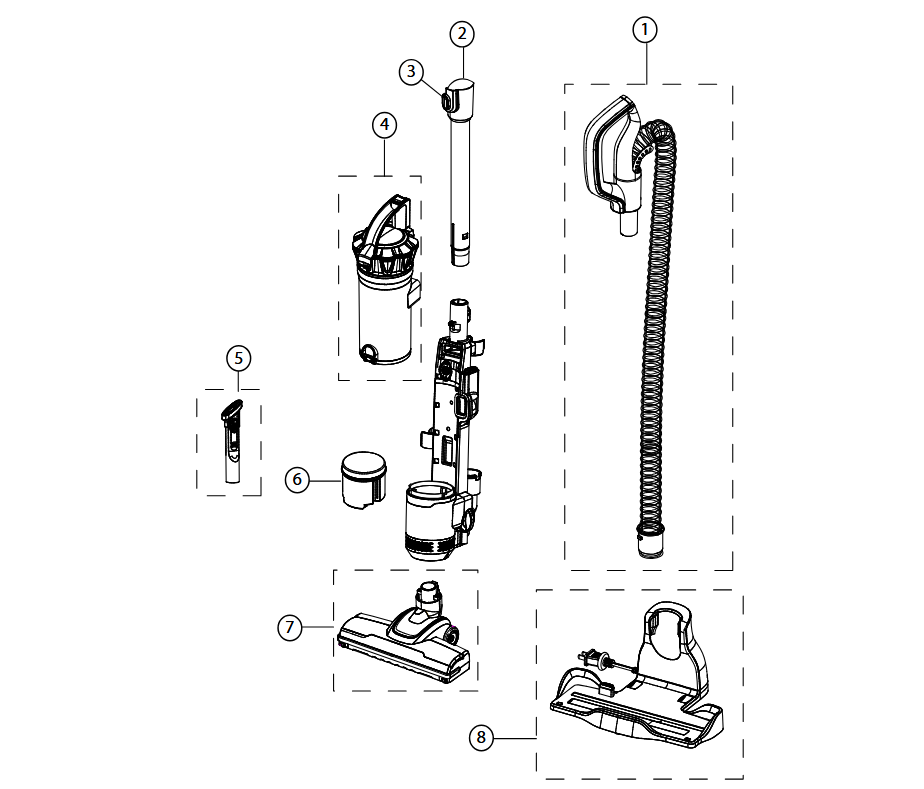

Part image |
Description |
SKU |
Price |
| 1 | Not Available | Hose Assembly Lid Assembly | C413-17GR | Not Available |
|
| 2 | Not Available | Wand Assembly | C413-04GR | Not Available |
|
| 3 | Not Available | Wand Button Latch Assembly | C413-23GR | Not Available |
|
| 4 | Not Available | Dust Cup Assembly | C413-16GR | Not Available |
|
| 5 | Not Available | 2 In 1 Crevice Tool | C413-0300 | Not Available |
|
| 6 | Not Available | Battery | C413-0200 | Not Available |
|
| 7 | Not Available | Nozzle Assembly | C413-18GR | Not Available |
|
| 8 | Not Available | Charger Assembly | C413-0100 | Not Available |
|
| # |

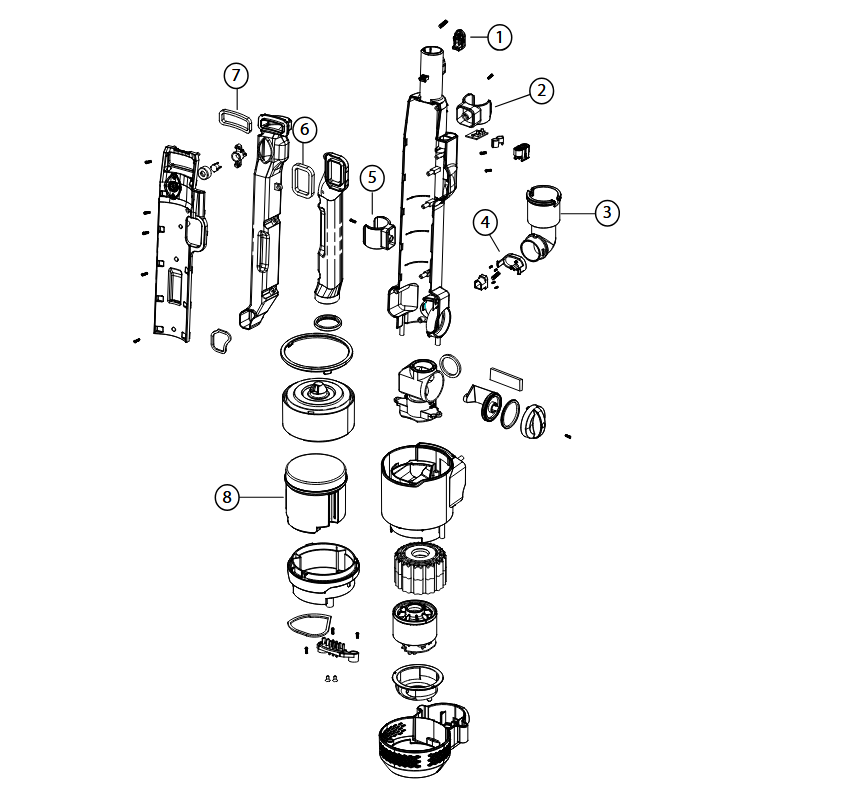

Part image |
Description |
SKU |
Price |
| 1 | Not Available | Wand Lock Button Assembly | B413-24GR | Not Available |
|
| 2 | Not Available | Hose Clip | B413-19GR | Not Available |
|
| 3 | Not Available | Elbow Button Latch Assembly | B413-20GR | Not Available |
|
| 4 | Not Available | Nozzle Release Button | B413-21GR | Not Available |
|
| 5 | Not Available | Tool Caddy 1 Crevice Tool | C413-22GR | Not Available |
|
| 6 | Not Available | Dust Cup Inlet Seal | B413-0700 | Not Available |
|
| 7 | Not Available | Dust Cup Outlet Seal | B413-0800 | Not Available |
|
| 8 | Not Available | Battery Assembly | C413-0200 | Not Available |
|
| # |

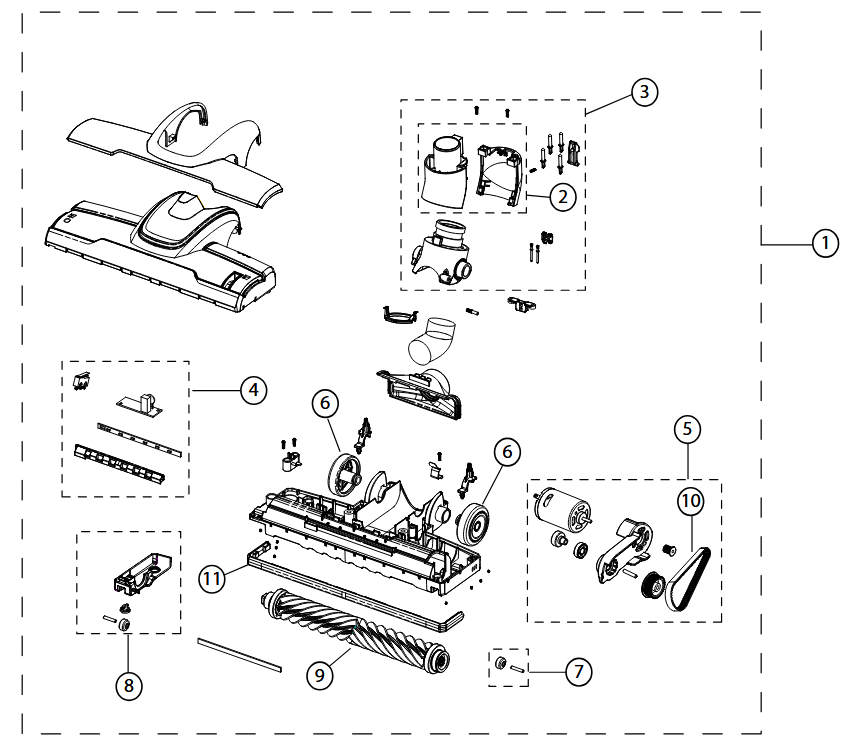

Part image |
Description |
SKU |
Price |
| 1 | Not Available | Power Nozzle Assembly Assembly | C413-18GR | Not Available |
|
| 2 | Not Available | Internal Neck Assembly (Revised) | C413-06BK | Not Available |
|
| 3 | Not Available | Neck Assembly With Wiring | C413-2014 | Not Available |
|
| 4 | Not Available | PCB and LED Assembly | C413-1400 | Not Available |
|
| 5 | Not Available | Motor Assembly 1 Crevice Tool | C413-0900 | Not Available |
|
| 6 | Not Available | Rear Wheel Assembly Seal | C413-26GR | Not Available |
|
| 7 | Not Available | Front Wheel Assembly Seal | C413-1100 | Not Available |
|
| 8 | Not Available | Brush Cover Assembly | B413-1200 | Not Available |
|
| 9 | Not Available | Brushroll Assembly | C413-1300 | Not Available |
|
| 10 | Not Available | Belt | A412-0200 | Not Available |
|
| 11 | Not Available | Furniture Guard | B413-2000 | Not Available |
|
