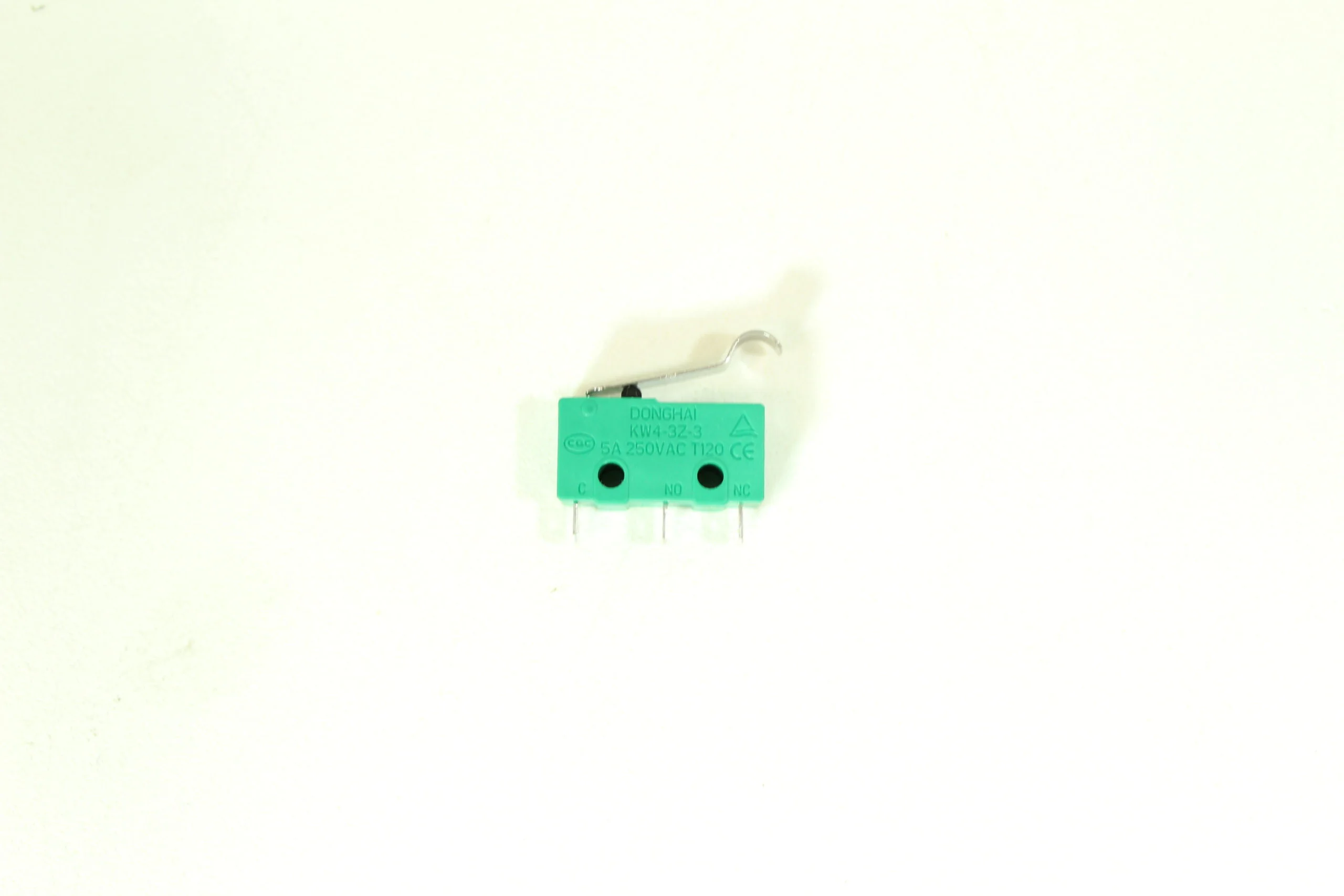

Shark Mirco Switch
  • Shark Mirco Switch
  • Shark Mirco Switch

Shark Navigator and Rotator Vacuum Brush Roll Micro Switch microswitch

$12.99

WE MEET OR BEAT ALL AUTHORIZED DEALER’S PRICING!!

If your Shark vacuum brush roll has stopped spinning, it’s time to replace the micro switch. This little switch is responsible for controlling the brush roll, so you’ll want to make sure it’s in good working condition. Thanks to this switch, you can keep your vacuum running like new. You may also need a security bit set to complete this repair. We have articles and videos that will help with this Shark micro switch repair.

In stock



SKU: X001ZE1X3R Categories: , , Brand:
Featured Video
How to Fix Your Shark Vacuum - VacuumsRus

Description

Looking for a replacement switch for your Shark vacuum? The Shark Micro Switch is just what you need! This switch is compatible with many Shark Rotator and Navigator models, and is used to detect whether the handle is in the up or down position. When the handle is in the up position, the roller turns off, and when it’s in the down position, the roller turns on. Most models only use 2 pins, and the center is not used. So if you’re looking for an easy way to keep your vacuum running smoothly, pick up a Shark Micro Switch today! NV350, NV351, NV352, NV401, NV402, NV450, NV501, NV502, NV503, NV500W, NV22, NV80, NV400, NV650, NV650W, NV651, NV652, UV410, UV420, UV440, UV440, UV540

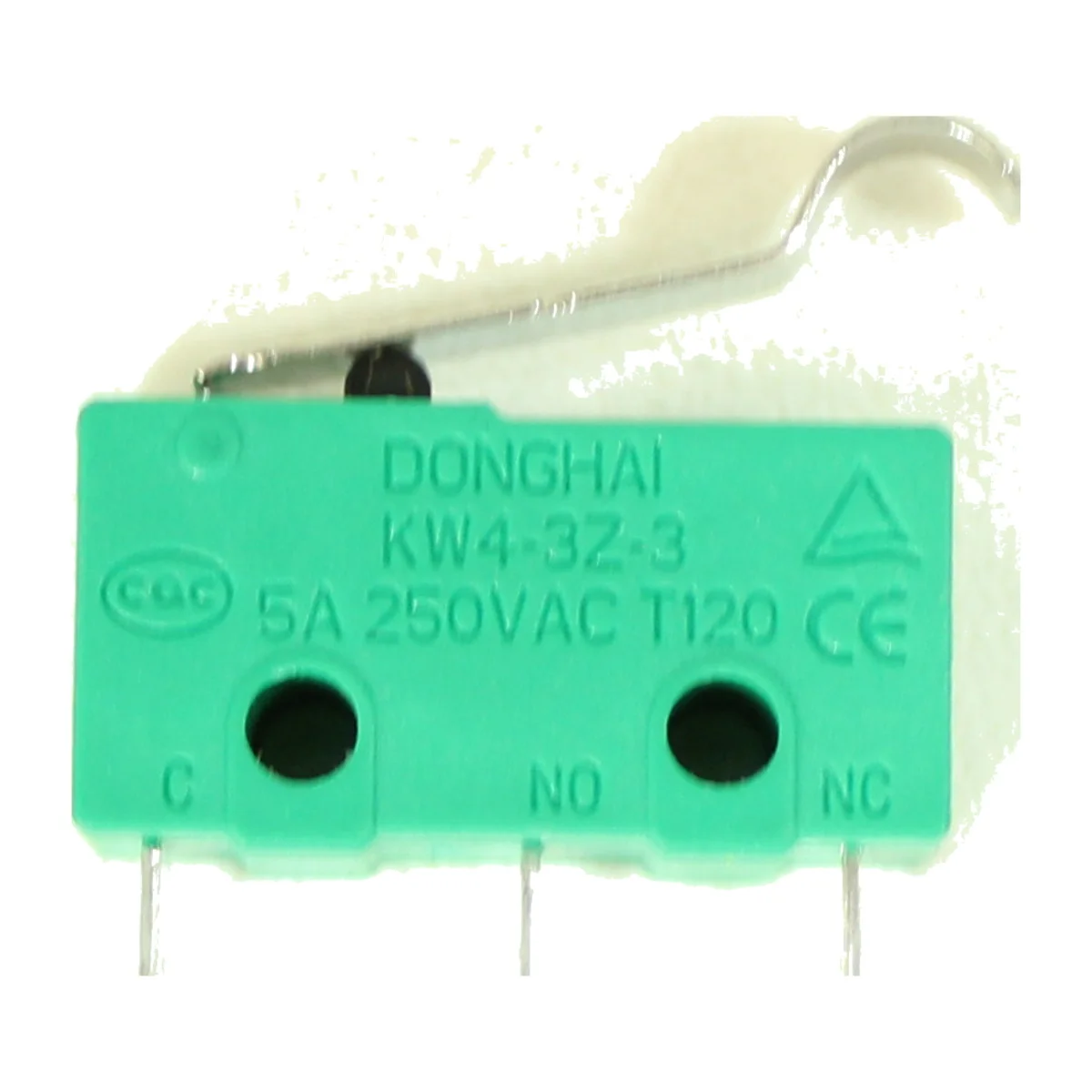

  • Model No.: KW4-3Z-3; Terminals: 3 terminal
  • Actuator action: momentary; Actuator type: hinge lever; Contact configuration: 1NO,1NC(SPDT)
  • Voltage & Current: AC 125V/250V 5A
  • Body size: 20*10*6mm (0.78*0.39*0.23 inch); Terminal length: 4mm/0.15″; Fixing hole diameter: 2mm/0.07″

Additional information

Weight 1 lbs
For brand/s

Part MPN

OEM/Alternate PNs

Product Brand

Condition

Report errors on this page HERE

This product is referenced on the following parts lists and is compatible with the following models

Schematic and parts list for: Shark Model: AH400, AH400C, AH401, AH452, AH452W, AH454Q
Schematic and parts list for: Shark Model: AX912
Schematic and parts list for: Shark Model: AX950
Schematic and parts list for: Shark Model: AZ1000, AZ1000W, AZ1001, AZ1002, AZ1002BRN, AZ1002C, AZ1002NP, AZ1003, AZ1003BRN
Schematic and parts list for: Shark Model: AZ1500, AZ1500WM, AZ1501
Schematic and parts list for: Shark Model: AZ1800, AZ1810
Schematic and parts list for: Shark Model: AZ2000, AZ2000, AZ2000W, AZ2000WWK, AZ2001AMZ, AZ2002, AZ201KT5, AZ201UPG5, AZ21KT501, AZ21KT502, AZ21KT503, AZ21UPG501, AZ21UPG502, AZ21UPG503
Schematic and parts list for: Shark Model: AZ3000, AZ3002, AZ3000W
Schematic and parts list for: Shark Model: CU500 CU530
Schematic and parts list for: Shark Model: LA322, LA301, LA300
Schematic and parts list for: Shark Model: LA481
Schematic and parts list for: Shark Model: LA500, LA502
Schematic and parts list for: Shark Model: LA555
Schematic and parts list for: Shark Model: LA700, LA702
Schematic and parts list for: Shark Model: NV100, NV100 26, NV105 26, NV106, NV105
Schematic and parts list for: Shark Model: NV150, NV150C, NV151, NV151​CA, NV151NP
Schematic and parts list for: Shark Model: NV201, NV202, NV200, NV200Q, NV200C, NV202C
Schematic and parts list for: Shark Model: NV22L, NV22, NV22S, NV26, NV27
Schematic and parts list for: Shark Model: NV250, NV251, NV255
Schematic and parts list for: Shark Model: NV26
Schematic and parts list for: Shark Model: NV341, NV341Q
Schematic and parts list for: Shark Model: NV350, NV350_26, NV350A_26, NV350E, NV350Q, NV350T, NV350W, NV350W_N, NV350WC, NV351, NV351C, NV351WM1, NV351WM2, NV352, NV352C, NV352CFS, NV352E, NV352Q, NV354C, NV355, NV355C, NV355CFS, nv356E, NV356K, NV356Q, NV357, NV358, NV358BRN
Schematic and parts list for: Shark Model: NV355
Schematic and parts list for: Shark Model: NV360, NV360K, NV361BK, NV361PR
Schematic and parts list for: Shark Model: NV390, NV391
Schematic and parts list for: Shark Model: NV400, NV401, NV402
Schematic and parts list for: Shark Model: NV450
Schematic and parts list for: Shark Model: NV42, NV4226, NV46, NV44
Schematic and parts list for: Shark Model: NV470
Schematic and parts list for: Shark Model: NV480, NV480 26, NV481, NV482, NV484
Schematic and parts list for: Shark Model: NV500, NV500C, NV500Q, NV500W, NV500WC, NV500WTV, NV501, NV501NP, NV502, NV505, NV552, UV560
Schematic and parts list for: Shark Model: NV581, NV581Q, NV581QBL, NV581QG, NV581QPR, NV581QR, NV581QT, NV581QTG, NV585, NV585, NV586
Schematic and parts list for: Shark Model: NV60
Schematic and parts list for: Shark Model: NV611, NV600, NV601
Schematic and parts list for: Shark Model: NV640, NV642
Schematic and parts list for: Shark Model: NV650, NV750, NV650W, NV651, NV651QBL, NV651QFR, NV651QGN, NV651QMR, NV651QPR, NV651QR, NV750W, NV751, NV752, NV752BRN, nv652
Schematic and parts list for: Shark Model: NV680, NV681, NV682, NV683
Schematic and parts list for: Shark Model: NV70, NV71
Schematic and parts list for: Shark Model: NV770, NV771
Schematic and parts list for: Shark Model: NV80, NVC80C
Schematic and parts list for: Shark Model: NV800, NV801, NV803
Schematic and parts list for: Shark Model: NV830, NV831, NV835
Schematic and parts list for: Shark Model: NV95, NV90
Schematic and parts list for: Shark Model: UV500
Schematic and parts list for: Shark Model: UV540 UV500WM UV541CCO UV550
Schematic and parts list for: Shark Model: UV600 UV650
Schematic and parts list for: Shark Model: UV810
Schematic and parts list for: Shark Model: UV850
Schematic and parts list for: Shark Model: UV900
Schematic and parts list for: Shark Model: ZD400, ZD402
Schematic and parts list for: Shark Model: ZD550, ZD552
Schematic and parts list for: Shark Model: ZU100
Schematic and parts list for: Shark Model: ZU51
Schematic and parts list for: Shark Model: ZU560 ZU561 ZU562
Schematic and parts list for: Shark Model: ZU570 ZU572
Schematic and parts list for: Shark Model: ZU60, ZU62, ZU62C, ZU62NP
Schematic and parts list for: Shark Model: ZU630
Schematic and parts list for: Shark Model: ZU700
Schematic and parts list for: Shark Model: ZU780, ZU782, ZU785
Schematic and parts list for: Shark Model: ZU80 ZU81
Schematic and parts list for: Shark Model: ZU880, ZU881
Shark parts book and schematics for shark Rockets models HV319Q, HV320, HV320W, HV321, HV322, HV325, UV330, UV422, UV422CCO, HV320C, HV322Q, HV324Q, HV345
Shark parts book and schematics for shark Rockets models HV292 HV300 HV301 HV302 HV303, HV305, HV308, HV310, UV450
